Cutting Equipment for the Metalworking Industry
Advanced solutions in industrial cutting
In SOINPRO S.L. We offer a wide range of cutting equipment for the metalworking industry, designed to optimize production in various industrial sectors. Our machinery selection includes band saws and circular saws, adapted to different work volumes and material types, from carbon steels to stainless steels and special alloys.
We work with leading manufacturers in the sector to provide reliable and efficient solutions, guaranteeing precise cuts, increased tool life, and optimized performance in production processes. Furthermore, we utilize state-of-the-art cutting equipment that incorporates advanced technologies to improve energy efficiency and reduce operating costs.
Band saws and circular saws: efficiency and precision
We offer band saws for applications requiring versatility and clean cuts in various dimensions and thicknesses. We also offer circular saws, ideal for fast, high-precision cuts, with models incorporating numerical control and automation to maximize productivity.
Each of our equipment ranges is tailored to specific needs, allowing you to find the optimal solution for any type of metal manufacturing, whether in high-volume production lines or in customized processes.
Used equipment and machinery upgrades

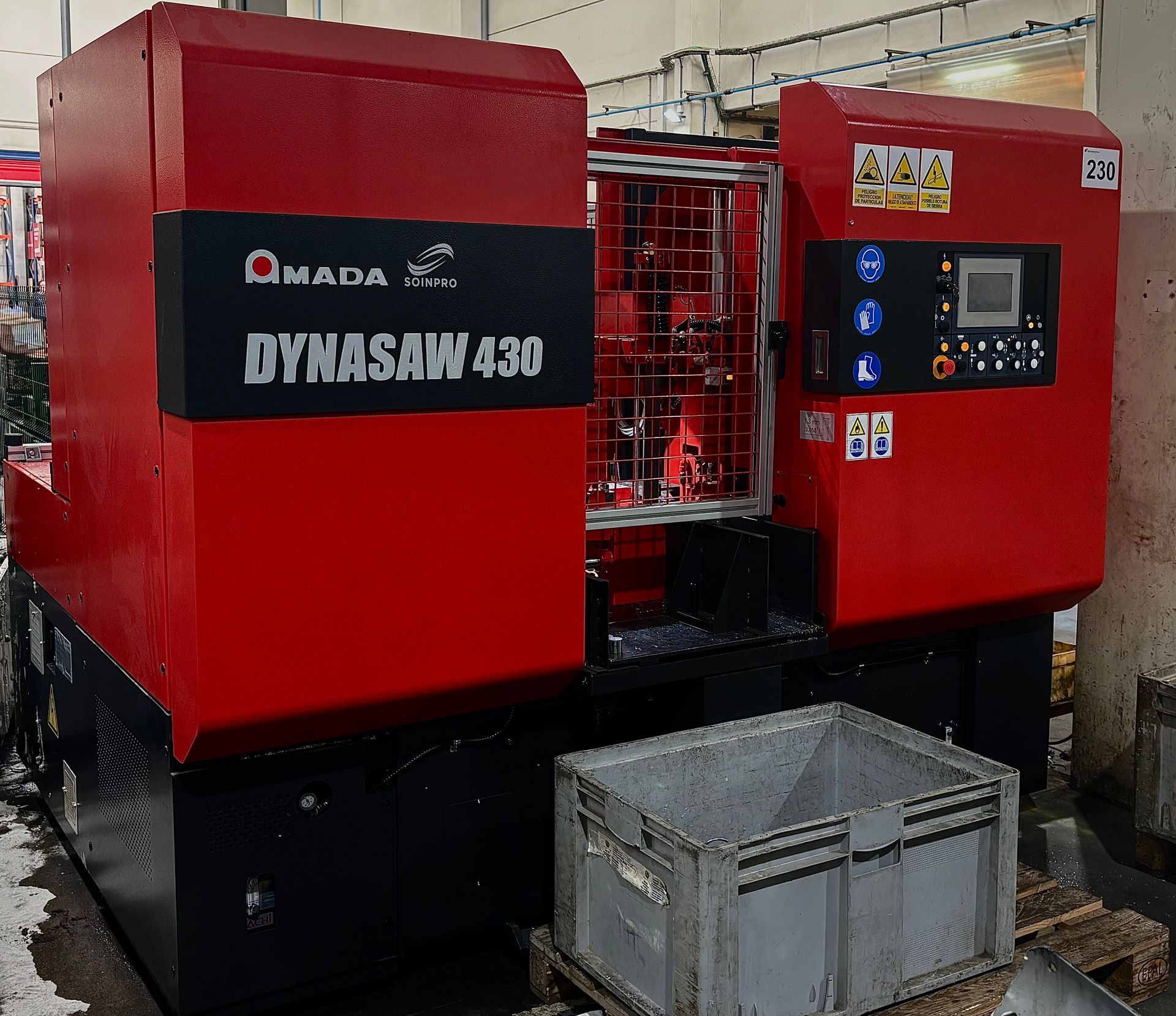

In addition to new machinery, in SOINPRO S.L. We offer refurbished and guaranteed used equipment, a cost-effective option for those seeking quality at a more affordable price. We also provide equipment upgrade and maintenance services, ensuring your machinery remains in optimal operating condition and at peak efficiency.
Specialized technical advice
We know that every company has specific needs, so our team of specialists is available to advise you on choosing the most suitable equipment for your production process.
PIVOTING BAND SAWS STRAIGHT CUT AND SEMI-AUTOMATIC DEGREES
Semi-automatic short-reach tines (kdg)
See more
automatic English slicer (odg)
SEE MORE
Semi-automatic straight cut (ksa)
SEE MORE
Semi-automatic straight cut (ksa)
SEE MORE

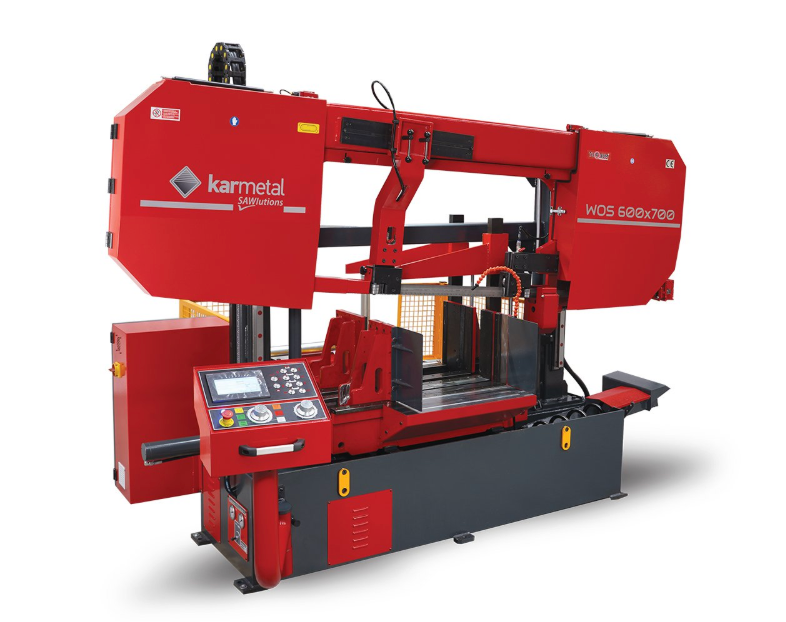

PACKAGE CUTTING SERIES (WOS)
SEE MORE
CRAFT MANUAL SERIES
SEE MORE
KDG 220X250 DM
TECHNICAL DATA
Main motor: 1.5 Kw
Belt Speed: 25-90 m/min
Strap dimensions: 3000x27x0.9 mm
Dimensions: 900x1750x1400 mm
Workbench height: 980 mm
Weight: 490 Kg
Category: Pivoting band saw and cutting
degrees. Gravity-driven downward movement and manual tightening.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 220 mm | 220 mm | 220x310 mm |
| 45º | 200 mm | 200 mm | 200x220 mm |
| 60º | 120 mm | 120 mm | 120x140 mm |
| -45º | 180 mm | 150 mm | 100x250 mm |

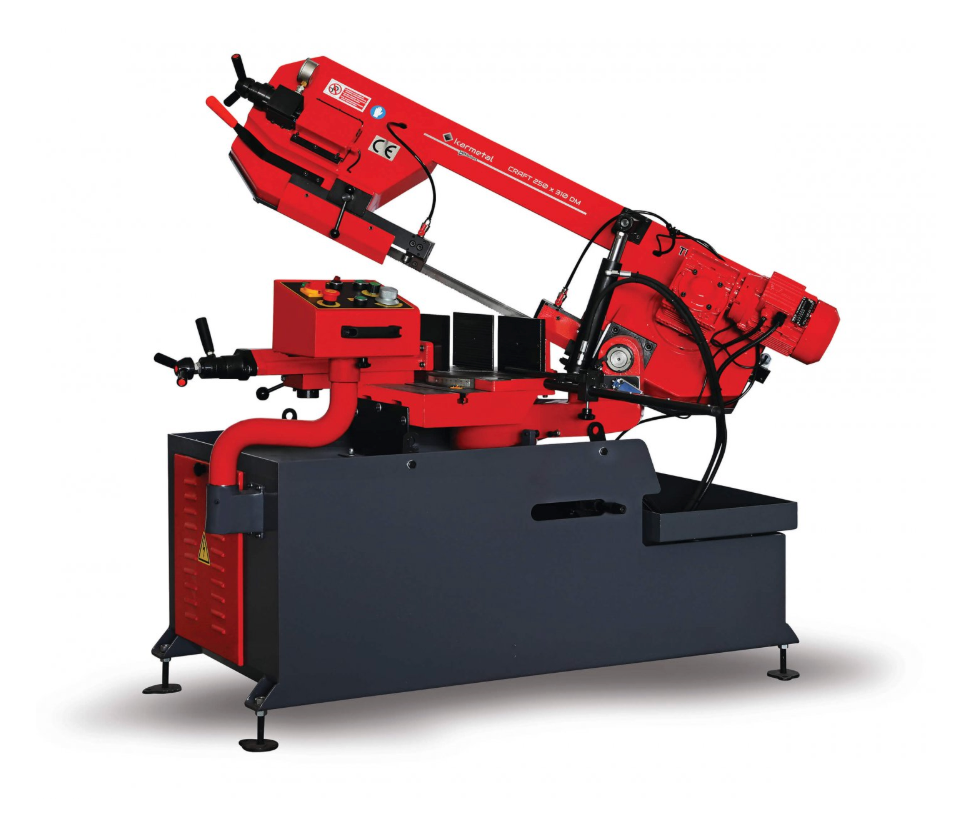

KMT Craft 250X310 DM
TECHNICAL DATA
Main motor: 1.5 Kw
Belt Speed: 25-90 m/min
Tape dimensions: 3150x27x0.9 mm
Dimensions: 750x1650x1150 mm
Workbench height: 730 mm
Weight: 490 Kg
Category: Pivoting band saw and cutting
degrees. Gravity-driven downward movement and manual tightening.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 220 mm | 250 mm | 250x310 mm |
| 45º | 200 mm | 200 mm | 200x250 mm |
| 60º | 120 mm | 120 mm | 120x140 mm |
| -45º | 180 mm | 150 mm | 100x250 mm |
Automatic pivoting and double column CN touch programmable band saws
SOSA 300X350 PLC
TECHNICAL DATA
Main motor: 2.2 Kw
Belt Speed: 25-90 m/min
Tape dimensions: 4000x27x0.9 mm
Dimensions: 1,330x2,220x1,370 mm
Workbench height: 740 mm
Weight: 1.100 Kg
Category: Double column descending band saw, linear guide system, cut descent control, with hydraulic movements and tightening.
Automatic material feeding with tractor roller advance system, continuous and programmable mode, using CN TOUCH, for different sizes and number of pieces.
Pressing rollers for forming several bars or profiles, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 300 mm | 300 mm | 300x350 mm |
(with optional packet former)
OSA 300x370 TOUCH PLC
TECHNICAL DATA
Main motor: 2.2 Kw
Belt Speed: 25-100 m/min
Tape dimensions: 3850x27x0.9 mm
Dimensions: 1200x1950x1300 mm
Workbench height: 740 mm
Weight: 850 Kg
Category: Double column descent band saw, linear guide systems, descent control to cut, hydraulic movements and tightening.
Automatic material feeding with tractor roller advance system, continuous and programmable mode, using CN TOUCH, for different sizes and number of pieces.
Pressing rollers for forming several bars or profiles, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 300 mm | 280 mm | 280x370 mm |
SECTION 350X450
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 25-90 m/min
Tape dimensions: 4300x34x1.1 mm
Dimensions: 1150x2500x1300 mm
Workbench height: 730 mm
Weight: 995 Kg
Category: Pivoting band saw and cutting
degrees. Hydraulic movement and tightening.
Automatic material feeding with tractor roller advance system, continuous and programmable mode, using CN TOUCH, for different sizes and number of pieces.
Pressing rollers for forming several bars or profiles, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 350 mm | 330 mm | 330x450 mm |
ODG 300x340 TOUCH PLC
TECHNICAL DATA
Main motor: 2.2 Kw
Belt Speed: 25-90 m/min
Tape dimensions: 3850x27x0.9 mm
Dimensions: 1220x2000x1300 mm
Workbench height: 750 mm
Weight: 960 Kg
Category: Pivoting band saw and cutting
degrees. Hydraulic lowering movement, cutting pressure control.
Automatic material feeding with tractor roller advance system, continuous and programmable mode, using CN TOUCH, for different sizes and number of pieces.
Pressing rollers for forming several bars or profiles, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 300 | 280 | 280x340 mm |
| 45º | 230 mm | 210 mm | 180x250 mm |
| 60º | 120 mm | 110 mm | 100x120 mm |
ODG 300x400 TOUCH PLC
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 25-90 m/min
Strap dimensions: 4350x34x1.1 mm
Dimensiones: 1300x2250x1400 mm
Workbench height: 750 mm
Weight: 1350 Kg
Category: Pivoting band saw and cutting
degrees. Hydraulic lowering movement, cutting pressure control.
Automatic material feeding with tractor roller advance system, continuous and programmable mode, using CN TOUCH, for different sizes and number of pieces.
Pressing rollers for forming several bars or profiles, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 350 mm | 330 mm | 330x400 mm |
| 45º | 300 mm | 280 mm | 270x300 mm |
| 60º | 180 mm | 160 mm | 150x180 mm |
WOS 280x300 TOUCH PLC
TECHNICAL DATA
Main motor: 2.2 Kw
Belt Speed: 25-90 m/min
Strap dimensions: 3660x27x0.9 mm
Dimensions: 1600x2300x1250 mm
Workbench height: 715 mm
Weight: 1175 Kg
Category: Pivoting band saw. Hydraulic lowering movement, pressure control.
Automatic material feeding system with programmable servomotor carriage clamp feed system, using CNC TOUCH, for different sizes and number of pieces.
Hydraulic clamping vise for forming packages, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 280 mm | 280 mm | 280x300 mm |
WOS 340X400 TOUCH PLC
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 25-100 m/min
Tape dimensions: 4300X34X1.1 mm
Dimensions: 1850x2500x1300 mm
Workbench height: 700 mm
Weight: 1500 Kg
Category: Pivoting band saw. Hydraulic lowering movement, pressure control.
Automatic material feeding system with programmable servomotor carriage clamp feed system, using CNC TOUCH, for different sizes and number of pieces.
Hydraulic clamping vise for forming packages, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 340 mm | 340 mm | 340x400 mm |
WOS 400X450 TOUCH PLC
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 25-100 m/min
Tape dimensions: 4300X34X1.1 mm
Dimensions: 1850x2500x1300 mm
Workbench height: 700 mm
Weight: 1500 Kg
Category: Pivoting band saw. Hydraulic lowering movement, pressure control.
Automatic material feeding system with programmable servomotor carriage clamp feed system, using CNC TOUCH, for different sizes and number of pieces.
Hydraulic clamping vise for forming packages, for simultaneous cuts, optimizing cutting times.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 340 mm | 340 mm | 340x400 mm |
HIGH PRODUCTION BAND SAWS
ULTRA 300x330 (AUTOMATIC-CNC)
TECHNICAL DATA
Main motor: 16.1 Kw
Belt Speed: 20-400 m/min
Strap dimensions: 7220x54x1.6 mm
Feeder stroke: 480 - 300 mm (CNC Programmable)
Dimensions: 1800x4150x2200 mm
Workbench height: 780 mm
Weight: 6000 Kg
Category: Double-column descending band saw, linear guide systems, electronic cut descent control, movements by
servo-motors and ball screws, controlled by Touch screen CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 300 mm | 300 mm | 300x330 mm |
VEGA 650x650 S-LINE (AUTOMATIC-CNC)
VEGA 650X650 (AUTOMATIC CNC)
TECHNICAL DATA
Main motor: 15 Kw
Belt Speed: 20-400 m/min
Strap dimensions: 7220x54x1.6 mm
Feeder stroke: 780 mm (CNC Programmable)
Dimensions: 2000x3850x2150 mm
Workbench height: 720 mm
Weight: 4500 Kg
Category: Double-column descending band saw, linear guide systems, electronic cut descent control, movements by
servo-motors and ball screws, controlled by Touch screen CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 650 mm | 620 mm | 620x650 mm |
| (PACKAGE FORMATION) 500X600 |
ILT 350 AUTOMATIC CUTTING LINE PLC
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 20-100 m/min
Tape dimensions: 350x32 mm
Meter stop stroke: 3000 mm (CNC Programmable)
Charger: Length 6000 mm, Maximum load 2500 kg
Dimensions: 9700x2360x1730 mm
Workbench height: 900 mm
Minimum cutting length: 100 mm
Weight: 4160 Kg
Category: Circular saw with double linear guide systems, head with reinforced gear system, helical system, control
Electronic cutting descent, longitudinal movements by means of servo-motors and ball screws, controlled by Touch screen CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 90º | 15-80 mm | 15x15-80x80 mm | 15x15-80x80 mm |
SMART 350 AUTOMATIC PLC CUTTING LINE
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 20-100 m/min
Tape dimensions: 350x32 mm
Measuring feeder stroke: 1000 mm
Charger: Length 6000 mm, Maximum load 2500 kg (Optional)
Dimensions: 2200x1100x2000 mm
Workbench height: 900 mm
Minimum cutting length: 120 mm
Weight: 1390 Kg
Category: Circular saw with double linear guide systems, head with reinforced gear system, helical system, control
Electronic cutting descent, longitudinal movements by means of servo-motors and ball screws, controlled by Touch screen CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 90º | 100 mm | 100x100 mm | 120x 90 mm |
SMART 350 LM 600 AUTOMATIC CUTTING LINE PLC
TECHNICAL DATA
Main motor: 4 Kw
Belt Speed: 20-100 m/min
Tape dimensions: 350x32 mm
Meter stop stroke: 3000 mm (CNC Programmable)
Charger: Length 6000 mm, Maximum load 2500 kg
Dimensions: 8060x2032x2017 mm
Worktop height: 960 mm
Minimum cutting length: 120 mm
Weight: 2790 Kg
Category: Circular saw with double linear guide systems, head with reinforced gear system, helical system, control
Electronic cutting descent, longitudinal movements by means of servo-motors and ball screws, controlled by Touch screen CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 90º | 15-80 mm | 15x15-80x80 mm | 15x15-80x80 mm |
PLC TX4 Automatic Measuring Stop
TECHNICAL DATA
Measuring stop, with movements by means of servo motors.
Works for maximum lengths of 3 meters.
Control and programming, using a PLC-Touch.
Possibility to program 10 lines, with different position measurements and parts.
Ability to store programs for later execution.
Barcode application (optional).
We have modular roller tables with an additional mechanical stop.
TX 2 y TX4.
LCS 400 DX DOUBLE HEAD AUTOMATIC PLC CUTTING LINE
TECHNICAL DATA
Main motor: 3 Kw
Belt Speed: 20-60 m/min
Tape dimensions: 400x32 mm
Disc travel: min 700 / max 3000 mm (PLC Programmable)
Dimensions: 4200x1200x1850 mm
Workbench height: 1000 mm
Weight: 2540 Kg
Category: Circular saw with double linear guide systems, head with reinforced gear system, helical system, control
Electronic cutting descent, longitudinal movements by means of servo-motors and ball screws, controlled by CNC.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 90º | 120 mm | 110x110 mm | 160x90 mm |
| /-45º | 120 mm | 100x100 mm | 120x90 mm |
| /- 60º | 90 mm | 90x90 mm | 90x90 mm |
LCS PRO 400 (SEMI-AUTOMATIC)
TECHNICAL DATA
Main motor: 3 Kw
Disc Speed: 20-80 m/min
Disc Dimensions: 400x40/50 mm
Dimensions: 1100x1000x1750 mm
Workbench height: 900 mm
Weight: 560 Kg
Category: Circular saw with double linear guide systems, head with reinforced gear system, conical helical system, oleopneumatic descent control.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 90º | 120 mm | 120x120 mm | 160x90 mm |
| -45º | 120 mm | 110x110 mm | 140x90 mm |
| 60º | 110 mm | 90x90 mm | 90x90 mm |
DT 315 DXS (CON PLC A 45º /-)
TECHNICAL DATA
Main motor: 3 Kw
Disc Speed: 36-72 m/min
Disc Dimensions: 315x32 mm
Dimensions: 1200x970x1400 mm
Worktop height: 870 mm
Weight: 480 Kg
Category: Pivoting drop disc saw, programmable rotation via PLC-TOUCH, /- 45º, ideal for batch cutting, head with reinforced gear system, helical system, control
of oleopneumatic descent.
CUTTING CAPACITY
| Material | Redondo | Square | Rectangular |
|---|---|---|---|
| 0º | 95 mm | 80x80mm | 110x60 mm |
| /-45º | 110 mm | 70x70 mm | 80x50 mm |
Efficient industrial processes
Contact us for more information about our cutting equipment.
